T Type Benchtop Lab Freeze Dryer

LFD-10T Freeze Dryer is suitable for freeze-drying experiment in laboratory. It is bench top T type equipment.
  • Number of ampoules24sticks
  • Water catching capacity3-4kg/24h
  • Installed power970w
  • T-frame size430×480mm (H*L)
Request QuotationChat Now
  • WhatsApp Chat

  • WeChat Chat


Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.The vacuum freezing drying techinology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture in the vacuum state.


1. CFC Free refrigeration

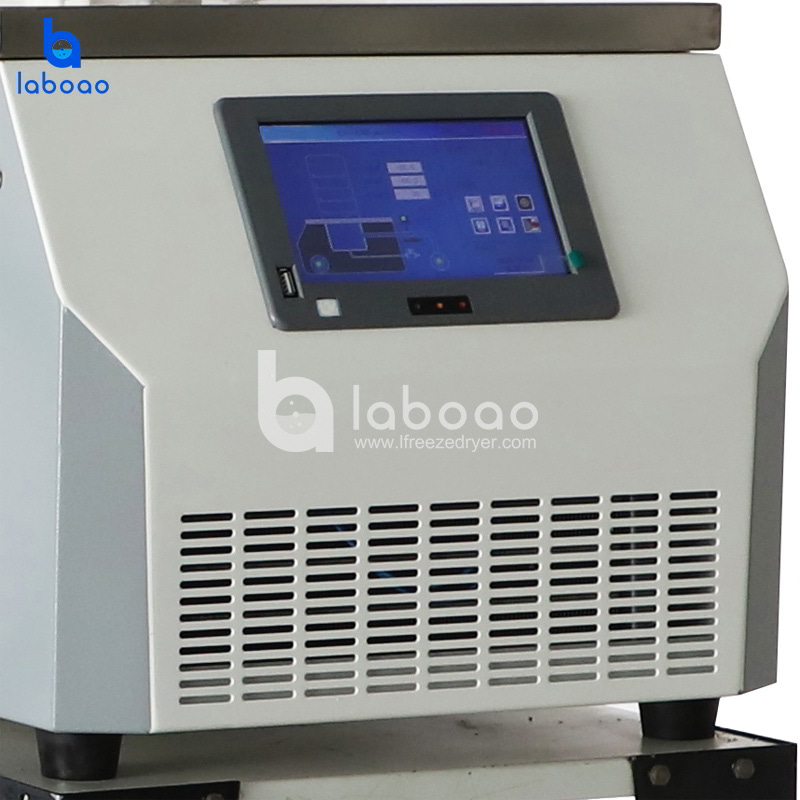

2. LCD display drying curves, English interface

3. Big opening of condenser, condenser with pre-freezing function

4. low noise compressor, good efficiency,long service life

5. Condenser and operation panel are all stainless steel

6. Drying Chamber with organic glass is safe and visible

7. Shelf and tray are stainless steel, tray spacing can be customized

8. Small volume , easy and convenient operation

9. Nitrogen valve is optional

10. Eutectic point test device is optional

11. Communication interface is optional

12. Cascade refrigeration is optional , applied for -80℃ device




Condenser capacity

3-4 kg /24h

Condenser temperature

    -55 (-80 optional )

 Vacuum degree

< 10 Pa

Rubber sealed valve

24 pcs, for 24 ampoule , special   requirement can be customized


Air, draughty,  ambient temperature ≤25


220V ,50 Hz;   110V, 50Hz;  110V, 60Hz

Host dimension

460*625*(370+440) mm

Host weight

41 kg
