Electric Heating Top Press Lab Freeze Dryer

LFD-18SB
LFD-18SB Freeze dryer is suitable for freeze-drying of bulk (liquid, pasty, solid) conventional materials.
  • Freeze dried area0.09㎡
  • Material tray sizeФ200mm
  • Water catching capacity6kg/24h
  • Plate material0.9L (material thickness 10mm)
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

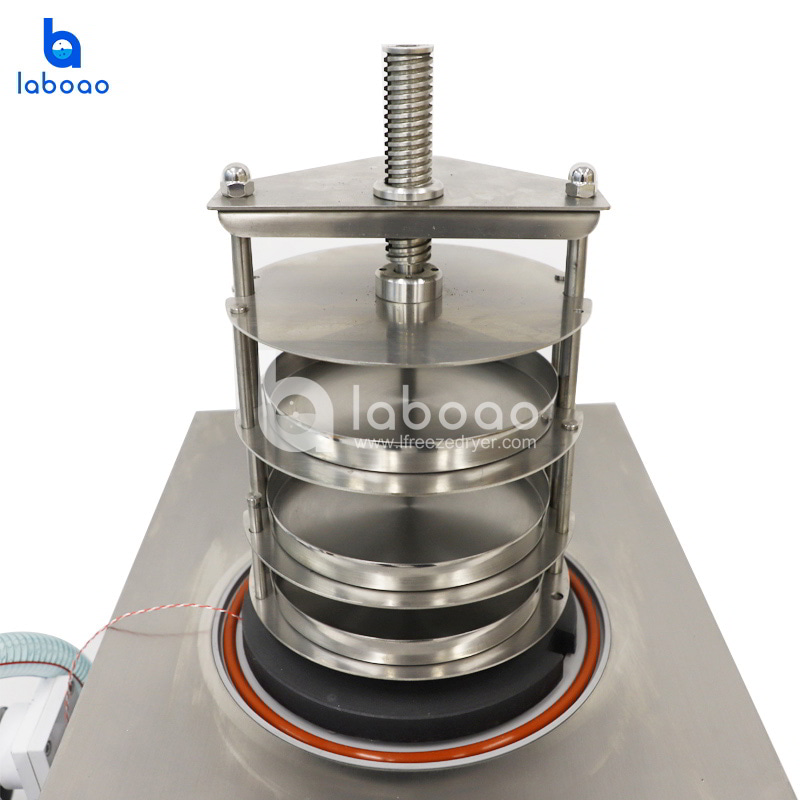

It is not only suitable for the freeze-drying of conventional materials in bulk (liquid, paste, solid), but also for the drying of the bottled materials of vial. When preparing for lyophilization, the materials are dispensed into the vials as needed, and the caps are floated and frozen. Drying, after the end of drying, the capping device is pressed tightly to avoid secondary pollution, re-adsorb moisture, and easy to store for a long time.

FEATURES

1. One-piece structure design, small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product are made of inert materials to meet the requirements of GLP.

3. The cold trap and the operating table are made of stainless steel, which is corrosion-resistant and easy to clean.

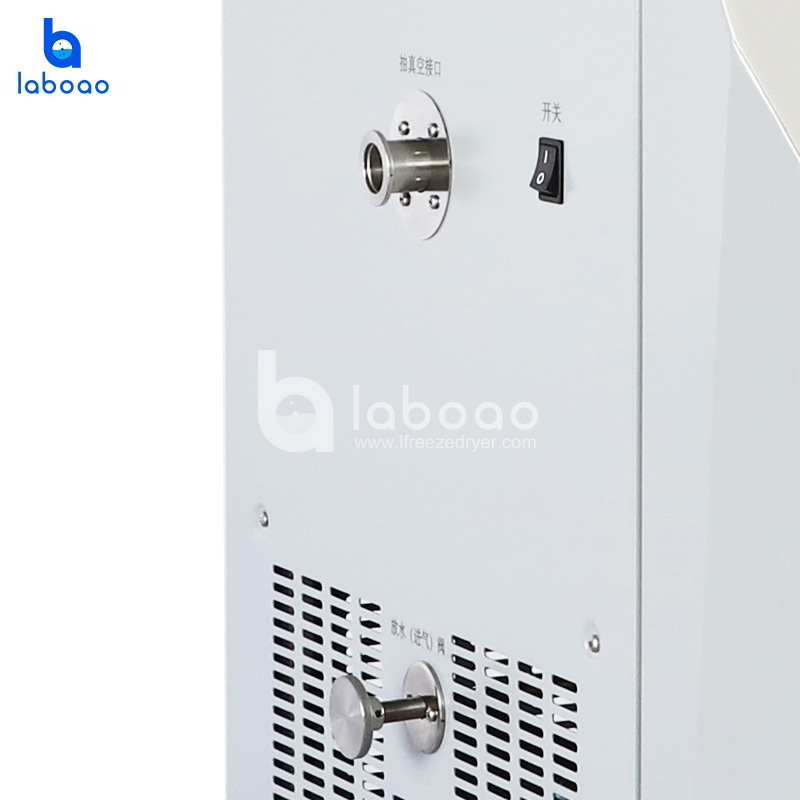

4. All stainless steel inflatable (discharge) valve The company design, production, safety, anti-corrosion, no leakage.

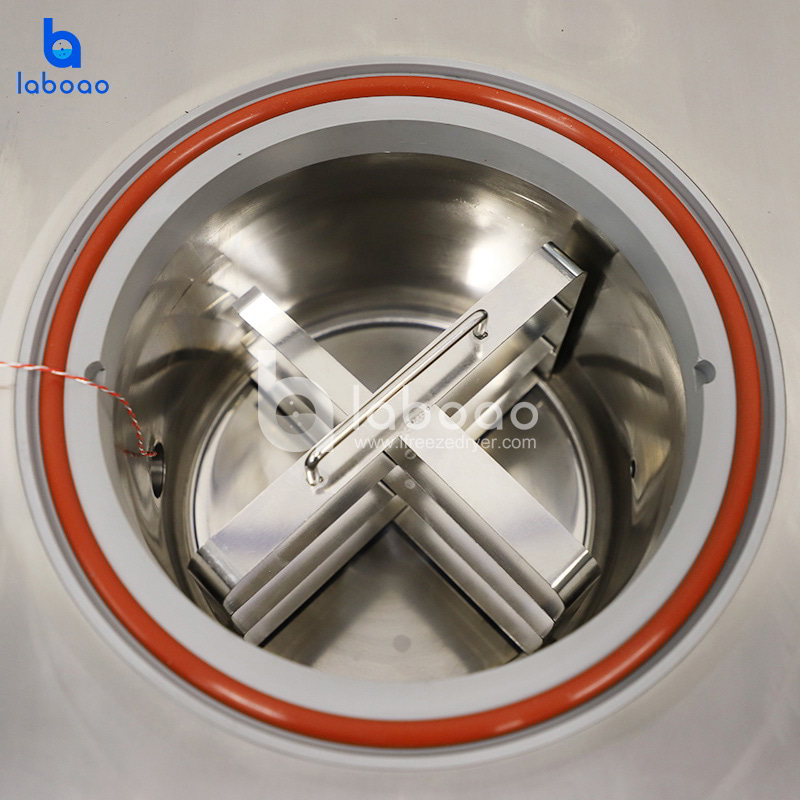

5. The cold trap has a large opening, no inner coil, and sample pre-freezing function, no need for a low temperature refrigerator.

6. Specialized gas guiding technology, cold trap for uniform ice trapping and strong ice trapping ability.

7. Internationally renowned brand compressors, high efficiency, energy saving, long service life and low noise.

8. Well-known brand vacuum pump, pumping speed, to achieve a higher ultimate vacuum.

9. Vacuum pump protection function, can set the vacuum pump to start the cold trap temperature and protect the service life of the vacuum pump.

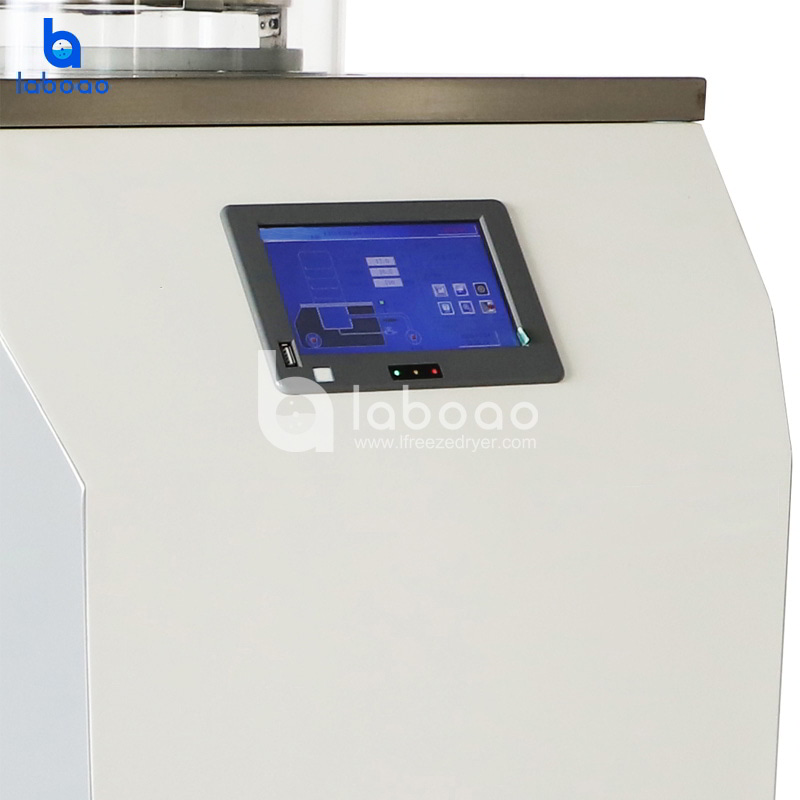

10.7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.

11. Professionally designed FD-EMB control system can save hundreds of process recipes, each set contains 50 temperature control sections to improve process optimization rate.

12. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed by computer and printed.

13. The plate layer heating safety voltage (36V) temperature control system can control the heating rate.

14. Flexible manual + automatic control mode, manual groping process, automatic batch production.

15. Real-time alarm display and historical alarm query function, convenient for fault diagnosis and equipment maintenance.

16. User level and password can be set and decentralized for operation management.

17. Powerful sensor calibration to ensure accurate measurement of long-term use.


SPECIFICATIONS

Model

LFD-18SB

Freeze-drying   area

0.09m2

Material   plate size

Ф200mm

Number of   material trays

3

Material   plate spacing

70mm

Cold trap   temperature

-60 °   C (no load), optional   -80 ° C (no load)

Cold trap   depth

400mm

Cold trap   diameter

Ф270mm

Water catching   capacity

6kg/24h

Pumping rate

4L/S

Ultimate   vacuum

5pa (no load)

Installed   power

1800w

Host weight

105kg

Mainframe   dimensions

630 × 580 ×   970mm

-80 °C   mainframe dimensions

810 × 580 ×   950mm

Drying   chamber size

Ф300×485mm

Cooling method

air cooling

Defrost mode

naturalized   cream

Plate   loading material

0.9L   (material thickness 10mm)

Vial bottle   Ф 12mm

615

Vial bottle   Ф 16mm

345

Vial bottle   Ф 22mm

183

OPTIONAL

· Cold trap temperature -80 ° C

· 3 Layer tray

· Civil point tester

· Vacuum pump anti-return device

· Cold trap electric heating defrost

· Oil mist filtration system

· Vacuum adjustment system

· LYO-MEGA software system

· Backfill filter

· Imported brand vacuum pump

· Non-standard customization

CONFIGURATION LIST

· Freeze dryer host × 1

· Vacuum pump ×1

· Gland drying rack ×1

· Glass plexiglass cover ×1

· Sample tray Ф 200 mm × 3

· User manual ×1

· Product Warranty Card ×1

· Product certificate ×1

· Other accessories
