0.09㎡ Top Press Lab Freeze Dryer
- Freeze dried area0.09㎡
- Material tray sizeФ200mm
- Water catching capacity6kg/24h
- Plate material0.9L (material thickness 10mm)
FEATURES
1. all-in-one structure , small size, no external flange, easy to use, no leakage.
2. All materials in contact with the product use inert materials to meet the requirements of the GLP.
3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.
4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.
5. with sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.
6. Patented gas diversion technology, and strong ice holding ability.
7. world- known brand compressors, high efficiency, long life, low noise.
8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.
11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.
SPECIFICATIONS
Model | LFD-18B |
freeze drying area | 0.09㎡ |
tray dia. | Ф200mm |
tray numbers | 3 |
tray spacing | 70mm |
cold trap temp. | ≤-60℃,optional ≤-80℃ |

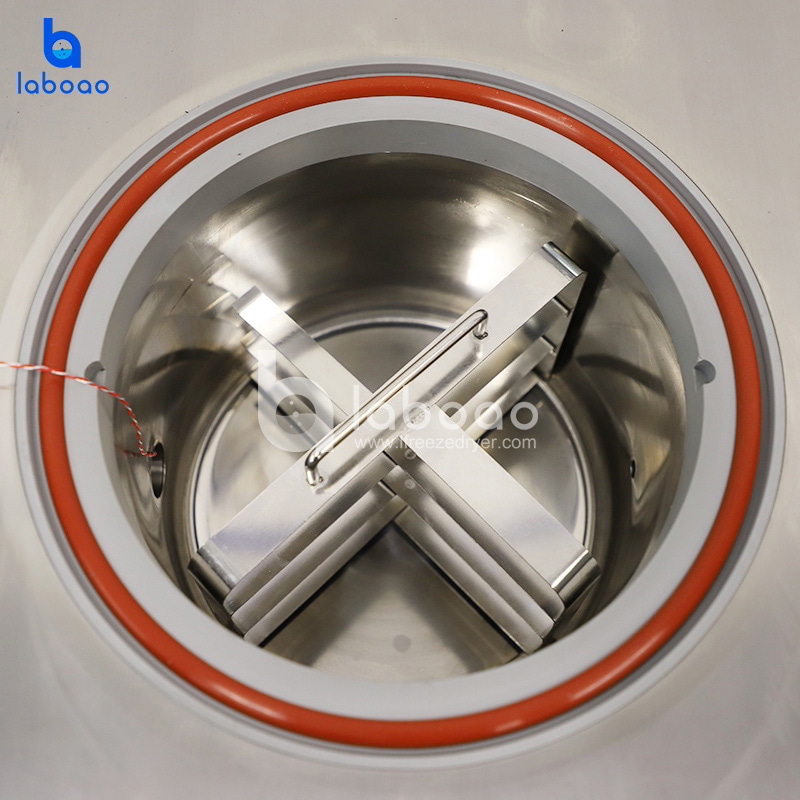

cold trap depth | 400mm |
cold trap dia. | Ф270mm |
ice collecting capacity | 6kg/24h |
pump speed | 4L/S |
ultimate vacuum | ≤5pa |
power | 1400w |
main unit weight | 105kg |
main unit dimensions | 630×580×970mm |
-80℃main unit dimensions | 810×580×950mm |
drying chamber dimensions | Ф300×540mm |
cooling mode | by wind |
defrosting mode | by air |
shipping weight | 0.9L(thickness 10mm) |
loadable vials q'ty | Ф12mm 615pcs Ф16mm 345pcs Ф22mm 183pcs |
