LFD-12SC Manifold Freeze Dryer

LFD-12SC
LFD-12SC Freeze dryer is suitable for freeze drying experiment in laboratory. It is bench top manifold equipment.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW

Vacuum freeze dryers are widely used in the fields of medicine, pharmaceuticals, biological research, chemicals and food. The lyophilized articles are easy to store for a long time, and can be restored to the state before lyophilization and maintain the original biochemical characteristics after adding water. The LFD-12SC freeze dryer is a small vertical freeze-drying machine with shelf heating and programmable functions for laboratory use or small production to meet the routine freeze-drying requirements of most laboratories.

FEATURES

1. One-piece structure design, small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product are made of inert materials to meet the requirements of GLP.

3. The cold trap and the operating table are made of stainless steel, which is corrosion-resistant and easy to clean.

4. All stainless steel inflatable (discharge) valve The company design, production, safety, anti-corrosion, no leakage.

5. The cold trap has a large opening, no inner coil, and sample pre-freezing function, no need for a low temperature refrigerator.

6. Specialized gas guiding technology, cold trap for uniform ice trapping and strong ice trapping ability.

7. Internationally renowned brand compressors, high efficiency, energy saving, long service life and low noise.

8. Well-known brand vacuum pump, pumping speed, to achieve a higher ultimate vacuum.

9. Vacuum pump protection function, can set the vacuum pump to start the cold trap temperature and protect the service life of the vacuum pump.

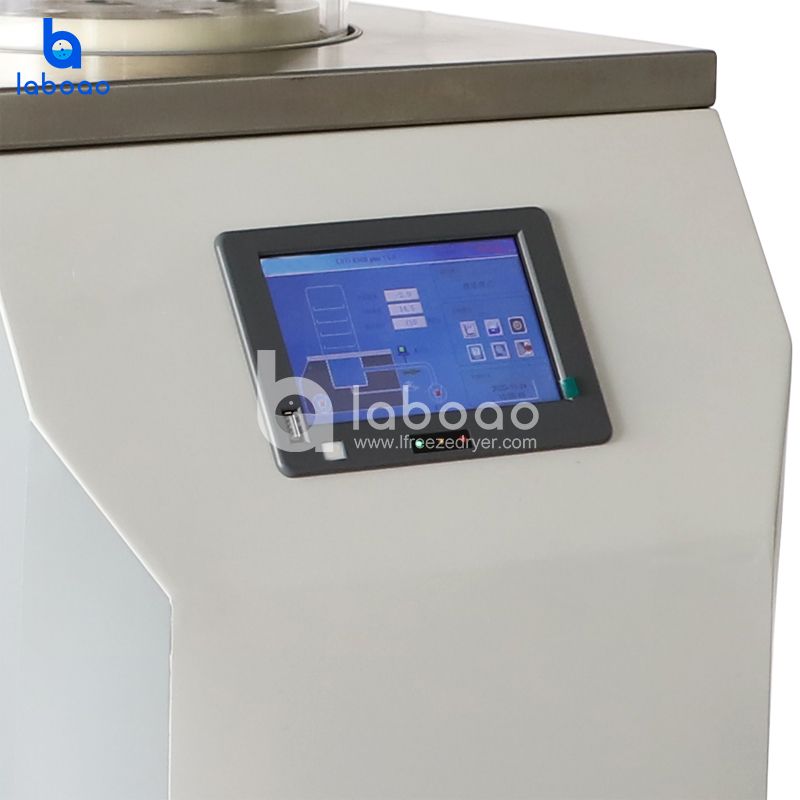

10.7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.

11. Professionally designed FD-EMB control system can save hundreds of process recipes, each set contains 50 temperature control sections to improve process optimization rate.

12. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed by computer and printed.

13. The plate layer heating safety voltage (36V) temperature control system can control the heating rate.

14. Flexible manual + automatic control mode, manual groping process, automatic batch production.

15. Real-time alarm display and historical alarm query function, convenient for fault diagnosis and equipment maintenance.

16. User level and password can be set and decentralized for operation management.

17. Powerful sensor calibration to ensure accurate measurement of long-term use.

18. The intelligent AI electric defrost SH-10KCQ uses safe voltage and combines multi-dimensional fuzzy control technology to significantly improve defrosting efficiency.

SPECIFICATIONS

Model

LFD-12SC

Freeze-dried   area

0.12m2

Temperature   range of tray

-40~+60

Material plate   size

Φ200mm

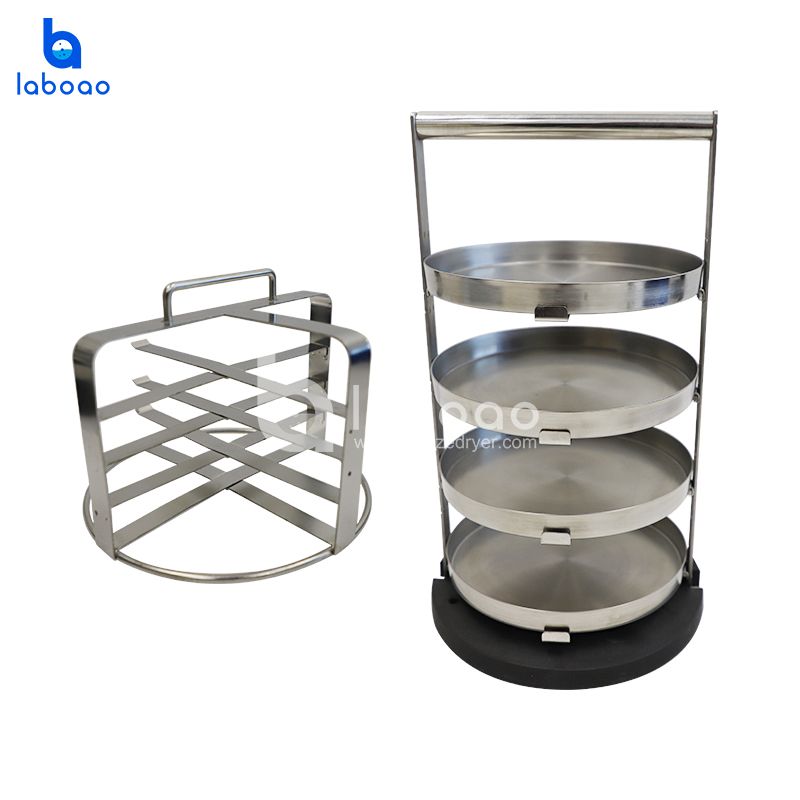

Number of   material trays

4

Material plate   spacing

70mm

Eggplant type   specifications and quantity

100/250/500/1000ml,   2 each

Cold trap   temperature

≤ -56 ° C (no   load), optional ≤ -80 ° C (no load)

Cold trap depth

240mm

Cold trap   diameter

Ф220mm

Water catching   capacity

3-4kg/24h

Pumping rate

2L/S

Ultimate vacuum

≤5pa (no load)

Installed power

1400w

Host weight

62kg

Mainframe   dimensions

580×500×720mm

-80°C mainframe   dimensions

770 × 550 ×   720mm

Drying chamber   size

Φ260×470mm

Cooling method

air cooling

Defrost mode

Nature defrost

Plate loading   material

1.2L (material   thickness 10mm)
