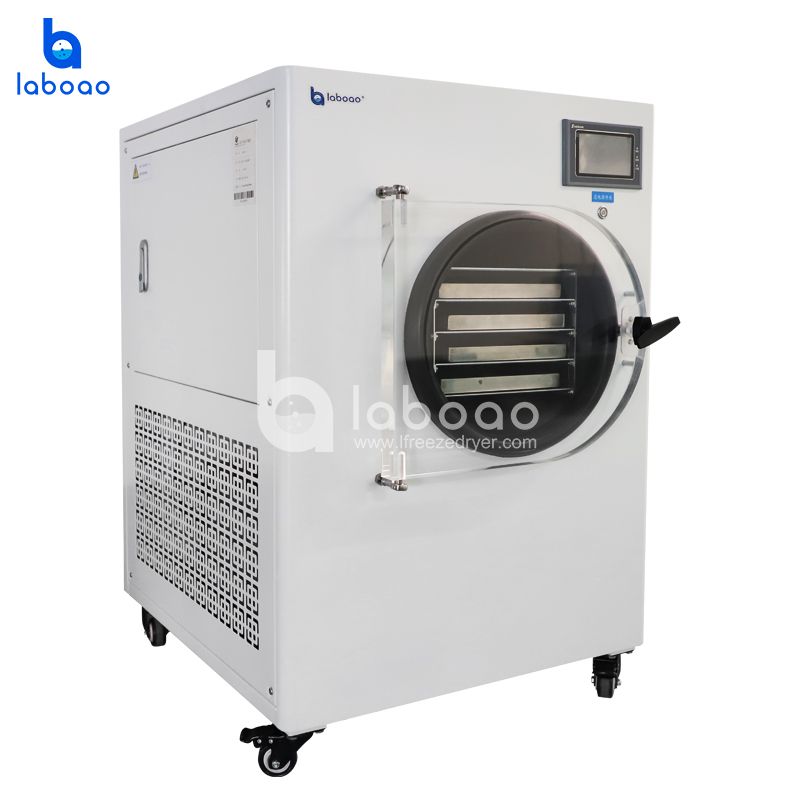

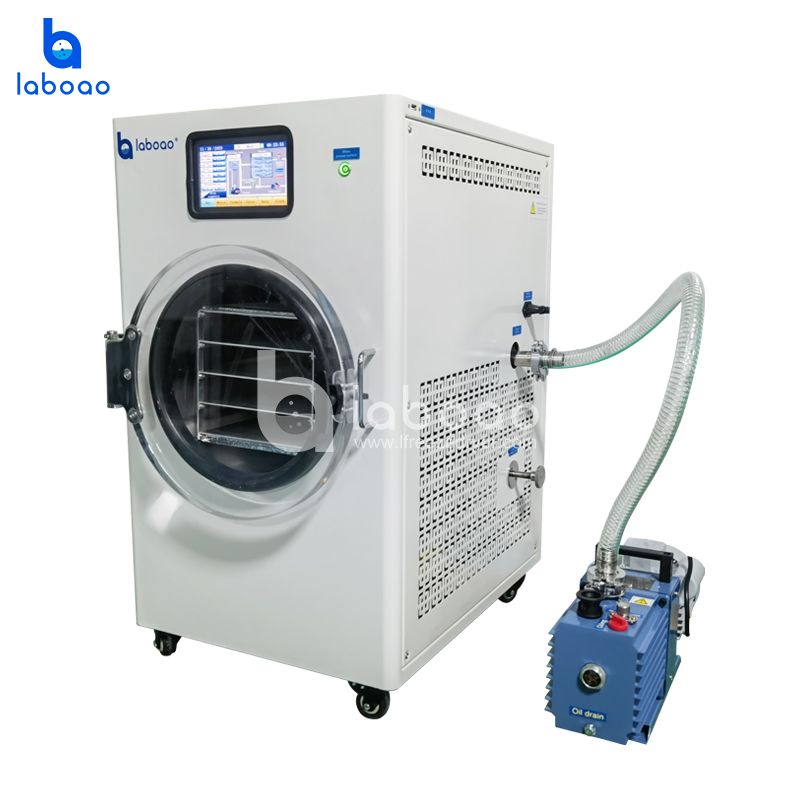

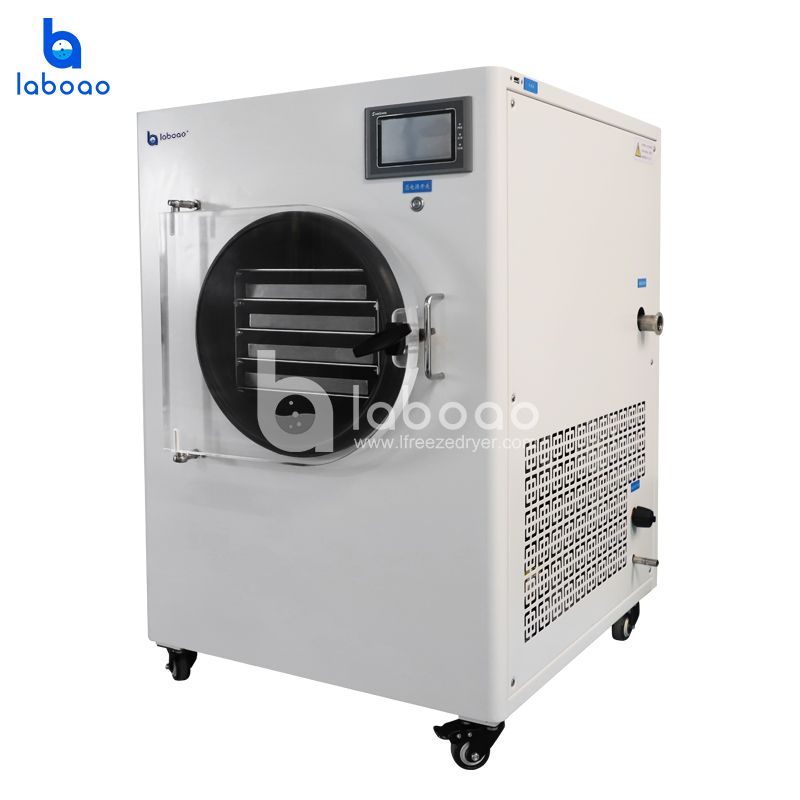

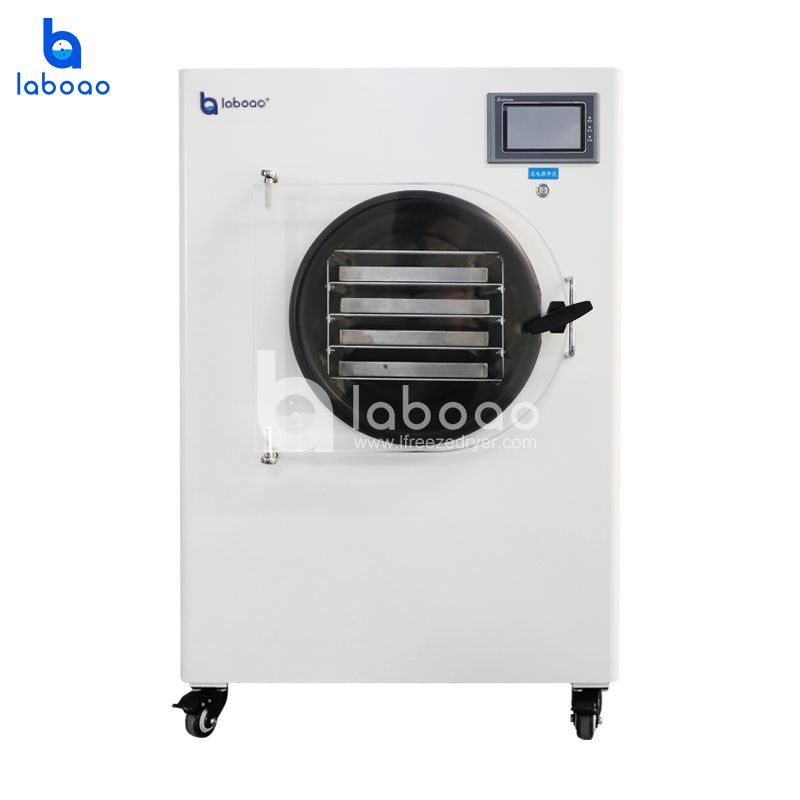

4-6kg Small Food Freeze Dryer For Fruits
LFD-4
Household freeze-drying equipment, also known as household-type freeze dryer, home freeze dryer, is a small vacuum freeze dryer. Apply to the family, online shop a small amount of freeze-dried use, widely adapted to fruits, meat, vegetables, Chinese herbal medicines, health products, etc. freeze-drying.
- Freeze dried area0.36㎡
- Loading capacity4~6kg
- Tray size200*450mm
- Number of tray4pcs
DETAILS

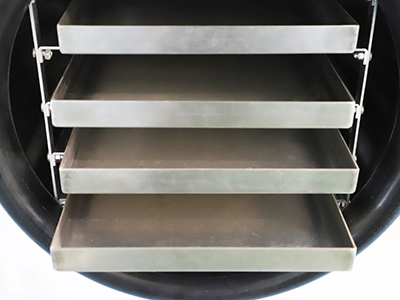

![4-6kg Small Food Freeze Dryer For Fruits detail - Stainless steel material trays and drying chamber.]()

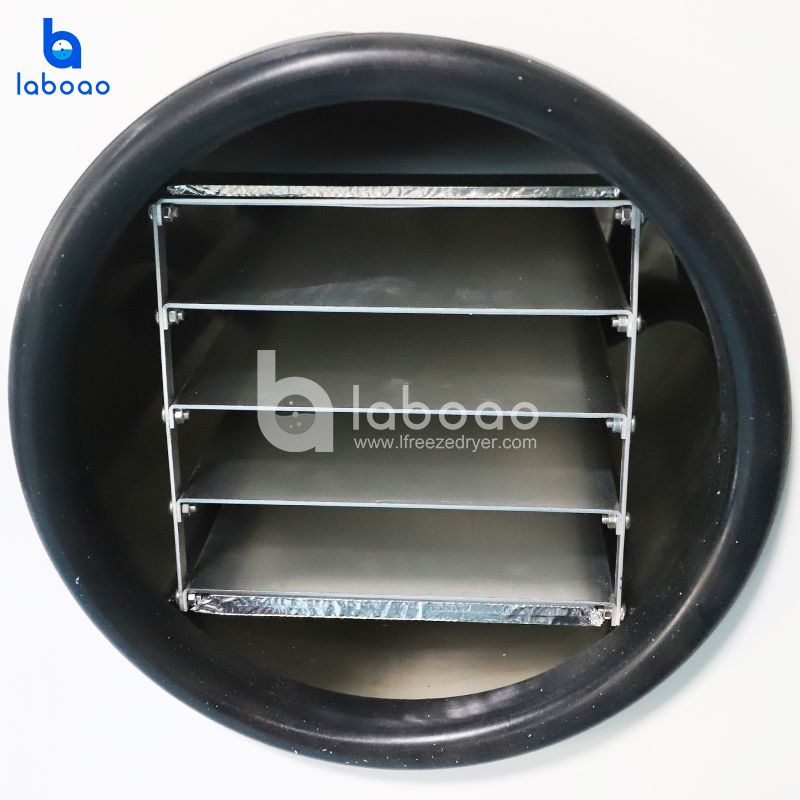

- 1. Stainless steel material trays and drying chamber.

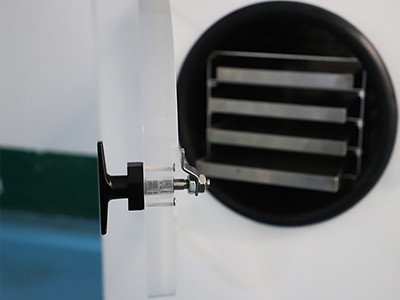

![4-6kg Small Food Freeze Dryer For Fruits detail - Transparent visible plexiglass door,can observe the lyophilization process of materials directly.]()

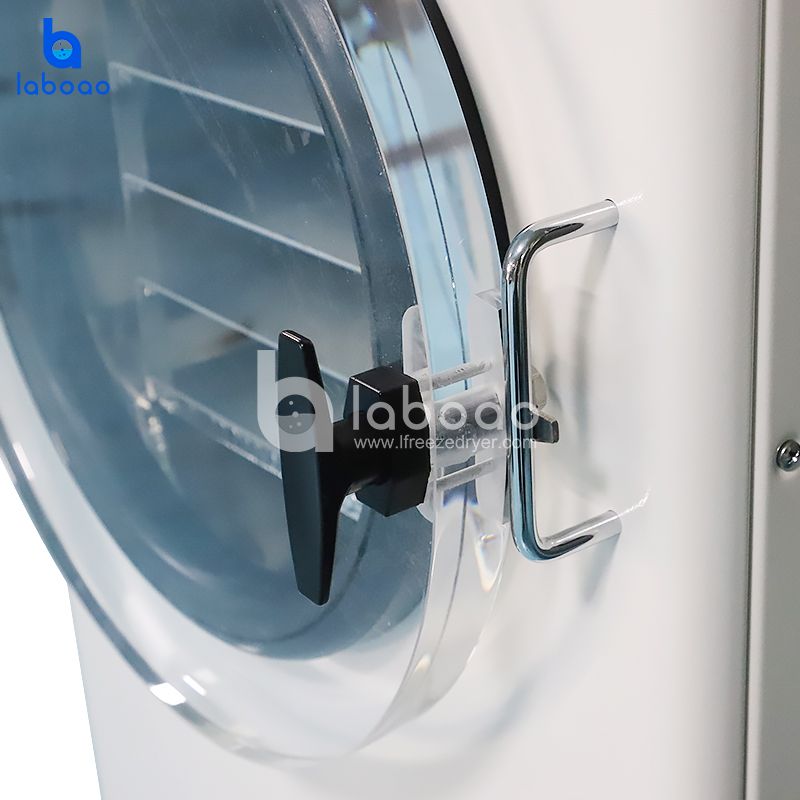

- 2. Transparent visible plexiglass door,can observe the lyophilization process of materials directly.

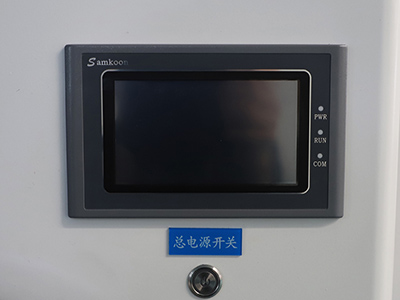

![4-6kg Small Food Freeze Dryer For Fruits detail - LCD touch screen, one button start. PLC system control, can set up programs and save different freeze drying formulas, one touch to run setted program for different samples.]()

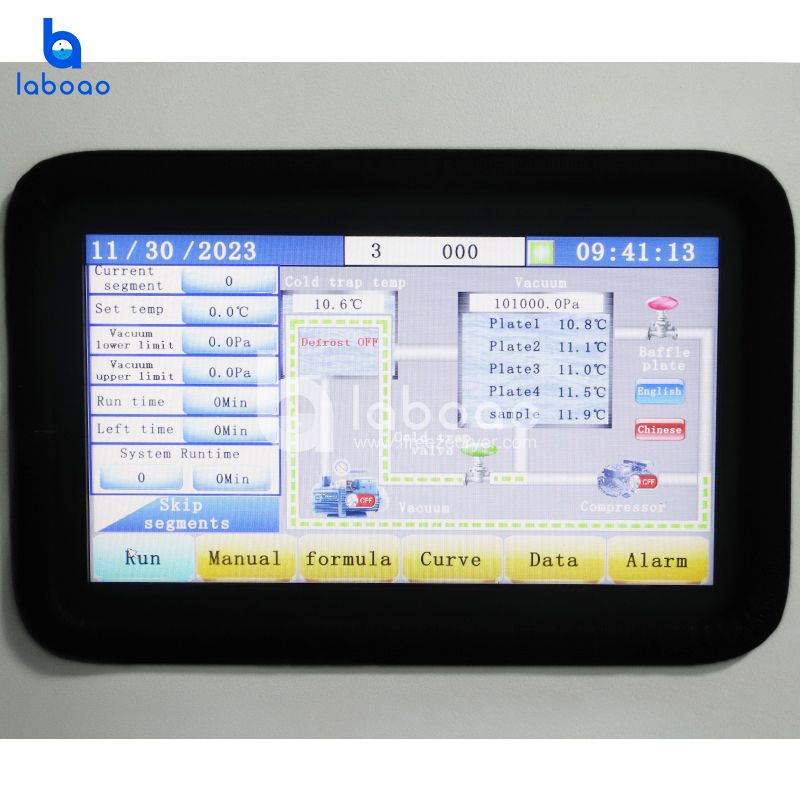

- 3. LCD touch screen, one button start. PLC system control, can set up programs and save different freeze drying formulas, one touch to run setted program for different samples.

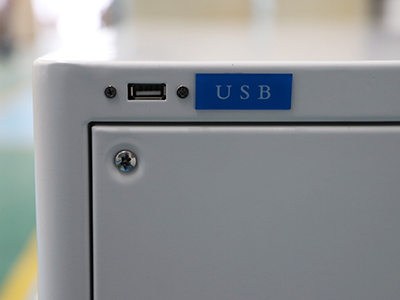

![4-6kg Small Food Freeze Dryer For Fruits detail - USB interface can download freeze drying data for record.]()
- 4. USB interface can download freeze drying data for record.

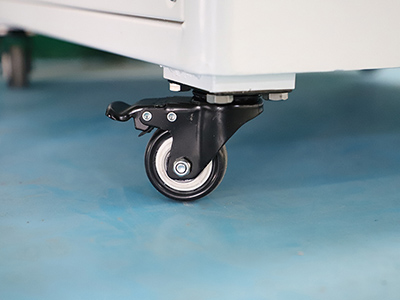

![4-6kg Small Food Freeze Dryer For Fruits detail - Sturdy and stable universal wheel, easy to move.]()
- 5. Sturdy and stable universal wheel, easy to move.
DESCRIPTION
Lyophilization or freeze drying is a process in which water is removed from a product after it is frozen and placed under a vacuum, allowing the ice to change directly from solid to vapor without passing through a liquid phase. The process consists of three separate, unique, and interdependent processes; freezing, primary drying (sublimation), and secondary drying (desorption).
FEATURES
1. Perfect appearance, compact size;
2. Touch screen operation, one key to start, and automatic freeze drying process, easy and convenient;
3. Key components with imported brands, small noise, large capacity, high quality and high performance;
4. Advanced system, with low operating current and low energy consumption;
5. 304 stainless steel food tray and inside liner, safety and easy clean;
6. Transparent organic glass door, the direct observation of food processing.
SPECIFICATIONS
Model | LFD-4 |
Overall size WxDxH | 700*860*930mm |
Energy consumption | 1100W |
Power supply | 220V 50HZ |
Food tray area | 0.4㎡ |
Single batch of food | 4~6kg |
Tray size | 200*450mm |
No. of tray | 4pcs |
Space between tray | 45mm |
Gross weight | 120kg |
Condenser temperature | ≤-35°C |
Drying temperature | -30°C ~+60°C |
Vacuum | ＜15Pa |
