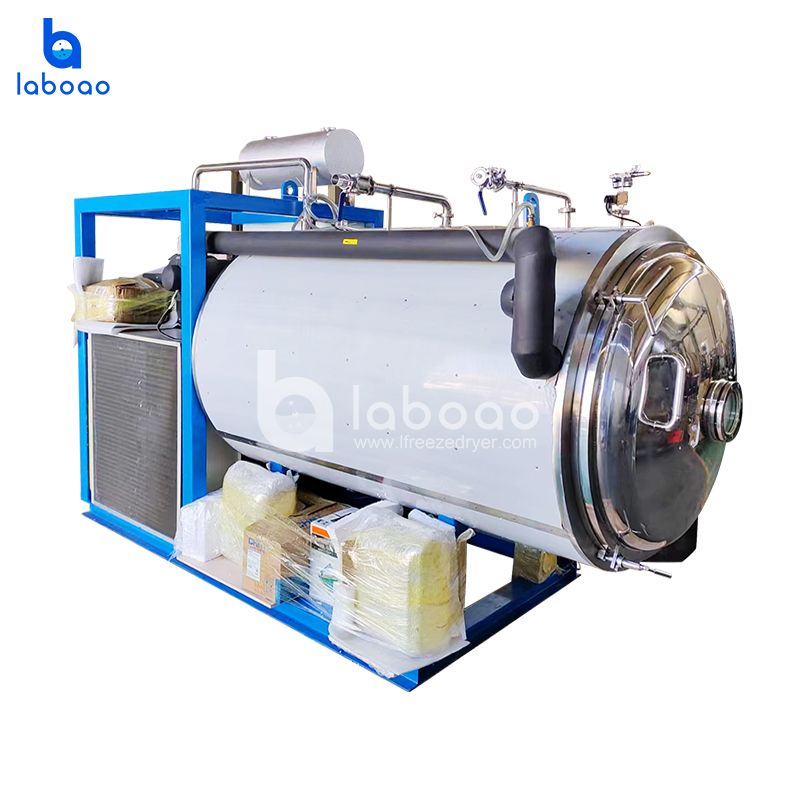

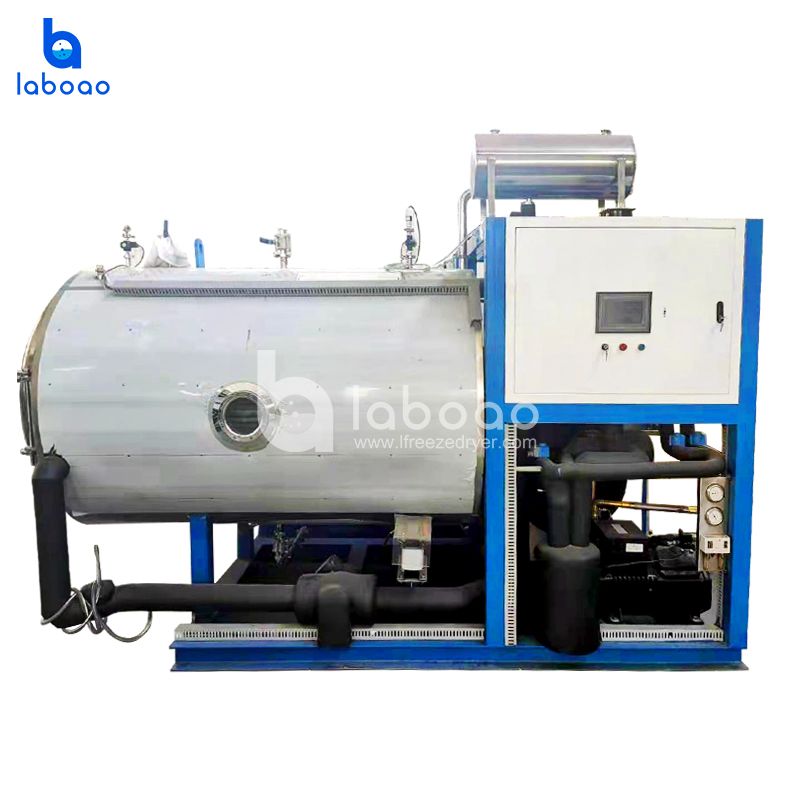

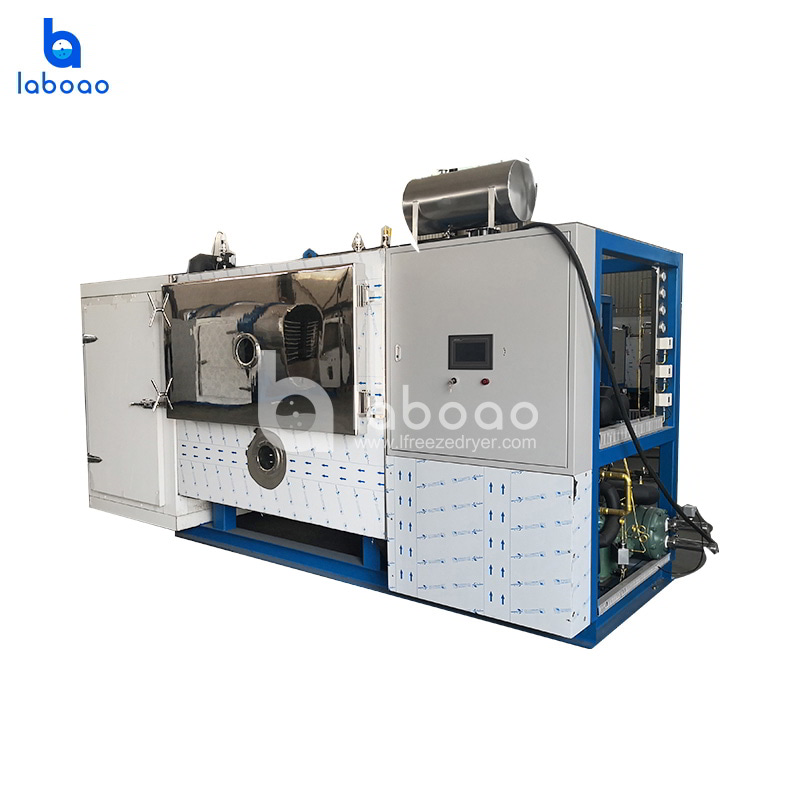

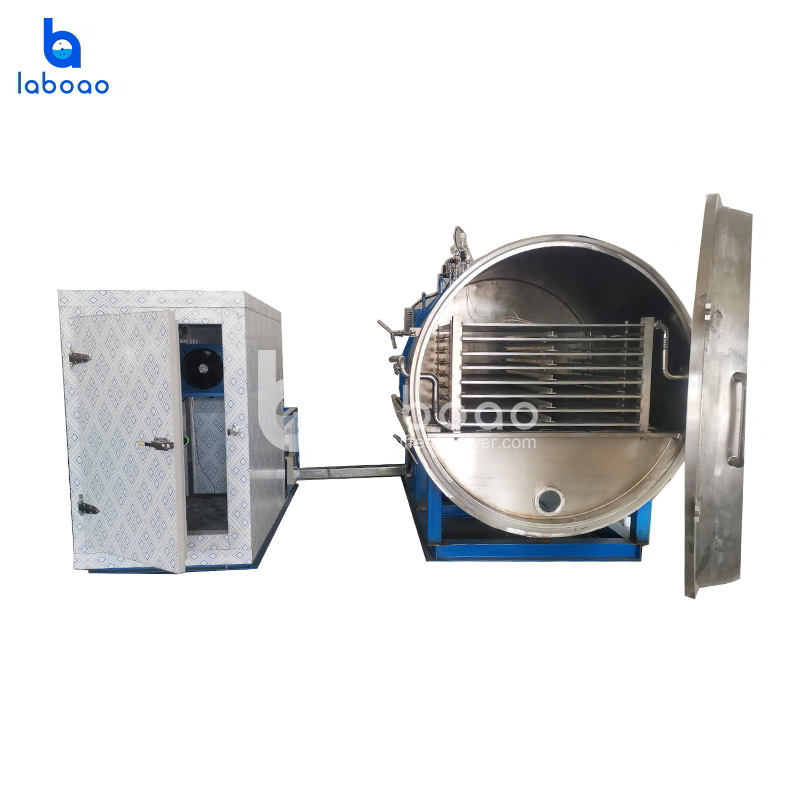

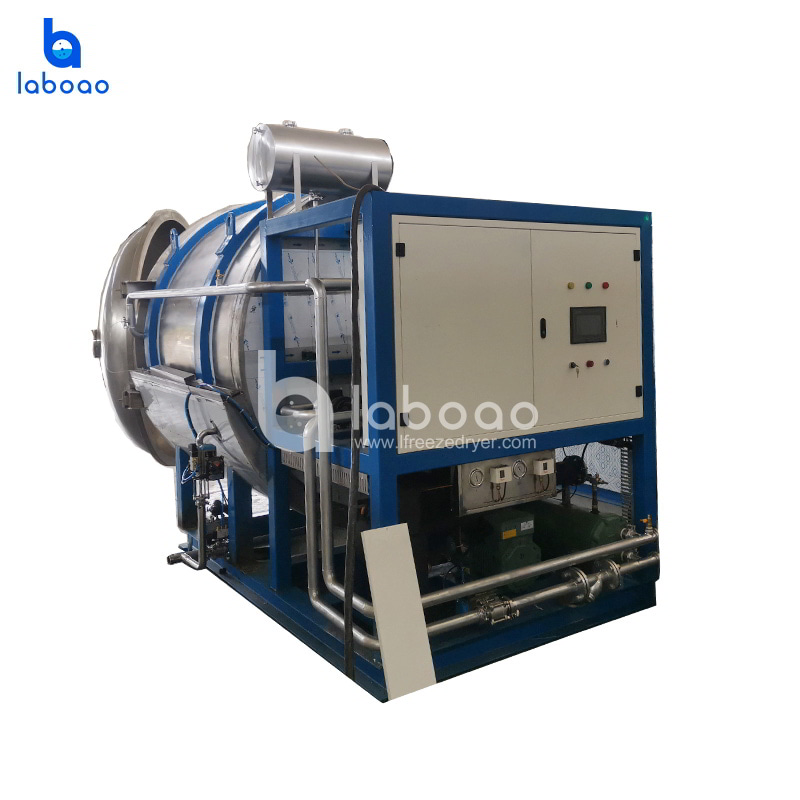

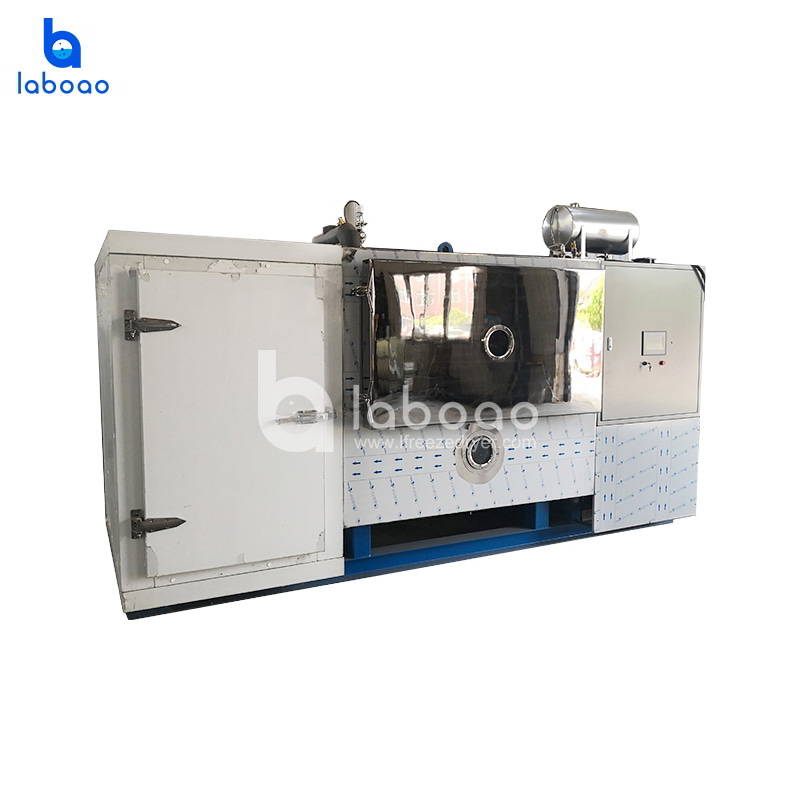

100kg Large Scale Meat Freeze Dryer
- Freeze dried area10㎡
- Water catching capacity≥150kg/24h
- Shelf size1000*1120mm (10pcs)
- Feeding amount100kg
- Installed power45kw
OVERVIEW
LG-10 food freeze dryer is suitable for Coptis, Angelica, Fritillaria, Gastrodia, Honeysuckle, Salvia, Yuanhu, Saffron, Ginseng, American Ginseng, Scutellaria, Licorice, Northern Adenophora, Lycium, Platycodon, Safflower, Peony, Peony, Dogwood, Rehmannia, Gold Freeze drying of various Chinese medicinal materials such as lotus, eucommia, coix, Chinese yam, ginkgo, gallnut, polyporus, astragalus, golden buckwheat, Cistanche. Low-temperature freeze-drying technology is an ideal method for material dehydration. It has the ability to keep the original active ingredients and nutrients of the material unchanged. After the article is dried, not only the color, fragrance, taste and shape are unchanged, but the rehydration can still maintain its original There are flavor active ingredients.
FEATURES
1. Pre-freezing and drying of separate structures are performed at the same time, which improves the freeze-drying efficiency and shortens the freeze-drying time.
2. Space alloy separator material, double-sided radiation heating, emissivity above 90%, good temperature uniformity.
3. Highly efficient mixed refrigerant medium, lower freezing point and higher boiling point, high heat exchange efficiency and long service life.
4. The drying curve optimization control algorithm can control the heating rate and vacuum value in the drying stage.
5. The patented gas diversion design and control technology have the strong ice catching ability and high drying efficiency.
6. Industrial-grade embedded touch screen + dedicated SH-HPSC-III modular controller, the system is stable and reliable, with high control accuracy.
7. The professionally designed FD-MANAGER control system can save multiple sets of process recipes, and can adjust the process in real time during the drying process to improve the process optimization rate.
8. Flexible manual + automatic control mode, manual groping process, and automatic batch production.
9. Accurate sensor calibration function ensures the accuracy of long-term use of process parameters.
10. Setting user level and password, and decentralizing operations and management.
11. Optional powerful LYO-MEGA main unit control system can record, save up to ten years of operating data, curves and alarm records, improve product traceability; at the same time convenient observation, operation and fault diagnosis.
12. Non-standard freeze dryers can be customized as requested.
SPECIFICATIONS
Model | LG-10 |
Freeze drying area (m2) | 10 |
Shipping weight (kg) | 100 |
Shelf numbers (Layers) | 9+1 |
Shelf dimensions (mm) | 1000*1120 |
Shelf spacing (mm) | 80 |
Temperature range (℃) | room temp.~+100℃ |
Ice collecting capacity (kg/batch) | ≥150 |
Cold trap temperature (℃) | ≤-65 |
Cooling mode | water cooled |
Defrosting mode | water soaked |
Ultimate vacuum (Pa) | ≤5Pa |
Power (kw) | 45 |
Dimensions (L*W*H) (mm) | 5000*2000*2500 |
Overall weight (kg) | 6000 |
