1-2 Kg Mini Food Freeze Dryer For Home Use

LFD-1
Household freeze-drying equipment, also known as household-type freeze dryer, home freeze dryer, is a small vacuum freeze dryer. Apply to the family, online shop a small amount of freeze-dried use, widely adapted to fruits, meat, vegetables, Chinese herbal medicines, health products, etc. freeze-drying.
  • Freeze dried area0.12㎡
  • Loading capacity1-2kg
  • Tray size140*278mm
  • Number of tray3pcs
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DETAILS

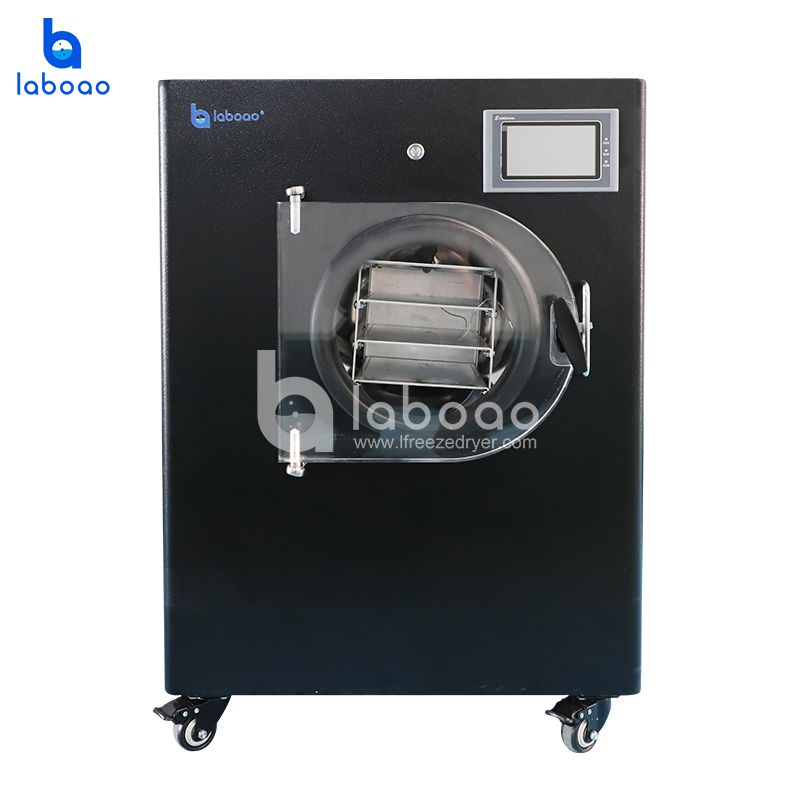

1-2 Kg Mini Food Freeze Dryer For Home Use detail - Stainless steel material trays and drying chamber.
1. Stainless steel material trays and drying chamber.
1-2 Kg Mini Food Freeze Dryer For Home Use detail - Transparent visible plexiglass door,can observe the lyophilization process of materials directly.
2. Transparent visible plexiglass door,can observe the lyophilization process of materials directly.
1-2 Kg Mini Food Freeze Dryer For Home Use detail - LCD touch screen, one button start. PLC system control, can set up programs and save different freeze drying formulas,  one touch to run setted program for different samples.
3. LCD touch screen, one button start. PLC system control, can set up programs and save different freeze drying formulas, one touch to run setted program for different samples.
1-2 Kg Mini Food Freeze Dryer For Home Use detail - USB interface can download freeze drying data for record.
4. USB interface can download freeze drying data for record.
1-2 Kg Mini Food Freeze Dryer For Home Use detail - Sturdy and stable universal wheel, easy to move.
5. Sturdy and stable universal wheel, easy to move.

VIDEO

DESCRIPTION

Lyophilization or freeze drying is a process in which water is removed from a product after it is frozen and placed under a vacuum, allowing the ice to change directly from solid to vapor without passing through a liquid phase. The process consists of three separate, unique, and interdependent processes; freezing, primary drying (sublimation), and secondary drying (desorption).

FEATURES

1. Perfect appearance, compact size;

2. Touch screen operation, one key to start, and automatic freeze drying process, easy and convenient;

3. Key components with imported brands, small noise, large capacity, high quality and high performance;

4. Advanced system, with low operating current and low energy consumption;

5. 304 stainless steel food tray and inside liner, safety and easy clean;

6. Transparent organic glass door, the direct observation of food processing;

SPECIFICATIONS

Model

LFD-1

Overall size WxDxH

400x550x700mm

Energy consumption

750W

Power supply

220V 50HZ

Food tray area

0.12

Single batch of food

1~2kg

Tray size

140*278mm

No. of tray

3pcs

Space between tray

40mm

Gross weight

80kg

Condenser temperature

≤-35°C

Drying temperature

-30°C ~+60°C

Vacuum

15Pa
