1㎡ Top Press Silicone Oil Heating Lyophilizer

LFD-100FB
It is not only suitable for the freeze-drying of conventional materials in bulk (liquid, paste, solid), but also for the drying of the bottled materials of Vial. When preparing for lyophilization, the materials are dispensed into the vials as needed, and the caps are floated and frozen. Drying, after the end of drying, the capping device is pressed tightly to avoid secondary pollution, re-adsorb moisture, and easy to store for a long time.
  • Freeze dried area1.15㎡
  • Material tray size475×595mm (4 pcs)
  • Water catching capacity≥15kg/24h
  • Plate material11L (material thickness 10mm)
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

Vacuum freeze dryers are widely used in the fields of medicine, pharmaceuticals, biological research, chemicals and food. The lyophilized articles are easy to store for a long time, and can be restored to the state before lyophilization and maintain the original biochemical characteristics after adding water.

LFD-100FB (silicone oil heating) freeze dryer, lyophilized in situ (patented product). It changes the cumbersome operation of the past drying process, prevents material contamination, and automates the drying and sublimation. This model has shelf heating and programmable functions, can remember the freeze-drying curve, and comes with u disk extraction function, which is convenient for users to observe the lyophilization process of materials.

FEATURES

1. The company's patented product square warehouse in-situ vacuum freeze dryer, pre-freezing, drying in-situ, easy to operate, good drying effect.

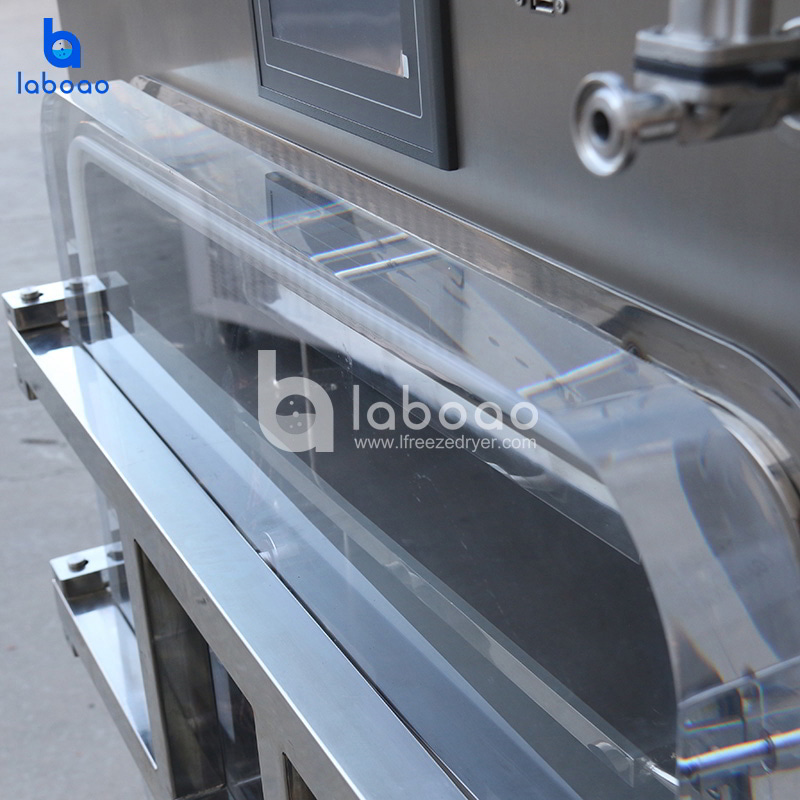

2. The drying chamber door is made of ACRYLIC material, which is colorless, transparent and observable for lyophilization.

3. Inflatable (discharge) valve adopts safety diaphragm valve, which can be connected to inert gas source, and is filled with inert gas after drying to extend the shelf life of the material.

4. Specialized gas guiding technology, cold trap for uniform ice trapping and strong ice trapping ability.

5. Internationally renowned brand compressors, dual-machine cascade refrigeration, high efficiency, energy saving, long service life and low noise.

6. The patented technology of the separator and the fuzzy control technology of the separator temperature, the shelf temperature difference is small, the temperature control precision is high, and the drying effect is uniform.

7. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.

8. Powerful sensor calibration to ensure accurate measurement of long-term use.

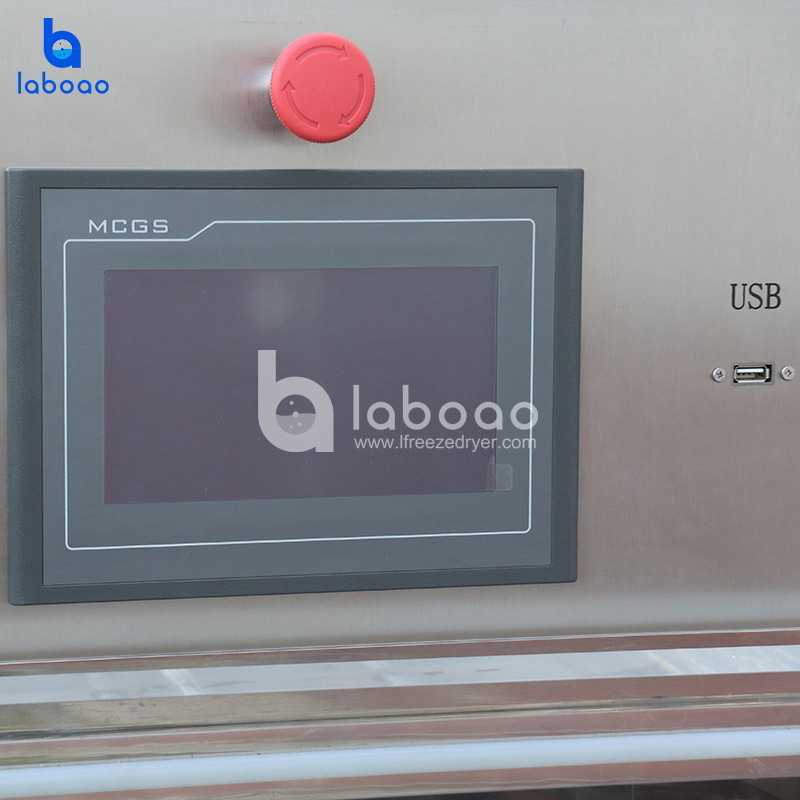

9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control precision, stable and reliable performance.

10. Professionally designed FD-PILOT control system can save hundreds of process recipes, each group contains 50 temperature control sections to improve process optimization rate.

11. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed and printed by computer and various operations to facilitate process optimization and drying effect verification.

12. Flexible manual + automatic control mode, manually used for groping process, automatically used for batch production.

13. Real-time alarm display and historical alarm query function for fault diagnosis and equipment maintenance.

14. Adjust the vacuum during the drying process to avoid foaming and blowing of special materials and improve drying efficiency.

15. User level and password can be set and decentralized for operation management.


SPECIFICATIONS

Model

LFD-100FB

Freeze-drying   area

1.15m2

Material   plate size

475 × 595mm

Number of   material trays

4

Shelf size

480 × 600mm

Number of shelves

4+1 floors

Shelf   spacing

70mm

Shelf   temperature range

-55 ° C ~   +70 ° C

Shelf   temperature difference

±1 °C   (balanced)

Cold trap   temperature

≤ -75 ° C   (no load)

Water   catching capacity

≥15KG/24h

Pumping rate

15L/S

Ultimate   vacuum

≤5pa (no load)

Installed   power

7500w

Host weight

1000kg

Mainframe   dimensions

1640×1100×1630mm+350mm   cylinder

Cooling   method

air cooling

Plate   loading material

11L   (material thickness 10mm)

Vial bottle   Ф 12mm

8624

Vial bottle   Ф 16mm

4788

Vial bottle   Ф 22mm

2460

OPTIONAL

· Eutectic point tester

· Freeze end point judgment function

· Imported brand vacuum pump

· Vacuum pump anti-return device

· Oil mist filtration system

· Mobile APP monitoring system

· LYO-MEGA software system

· Data recorder

· Backfill filter

· Automatic backfill and drainage control system

· Capacitive vacuum gauge

CONFIGURATION LIST

· Freeze dryer host ×1

· Vacuum pump × 1

· Sample tray × 4

· Hex wrench × 1

· Silicone oil × 1

· Circuit diagram × 1

· Instruction manual ×1

· Product warranty card × 1

· Product certificate × 1

· Other accessories
