LFD-12SD Manifold Top Press Freeze Dryer

LFD-12SD

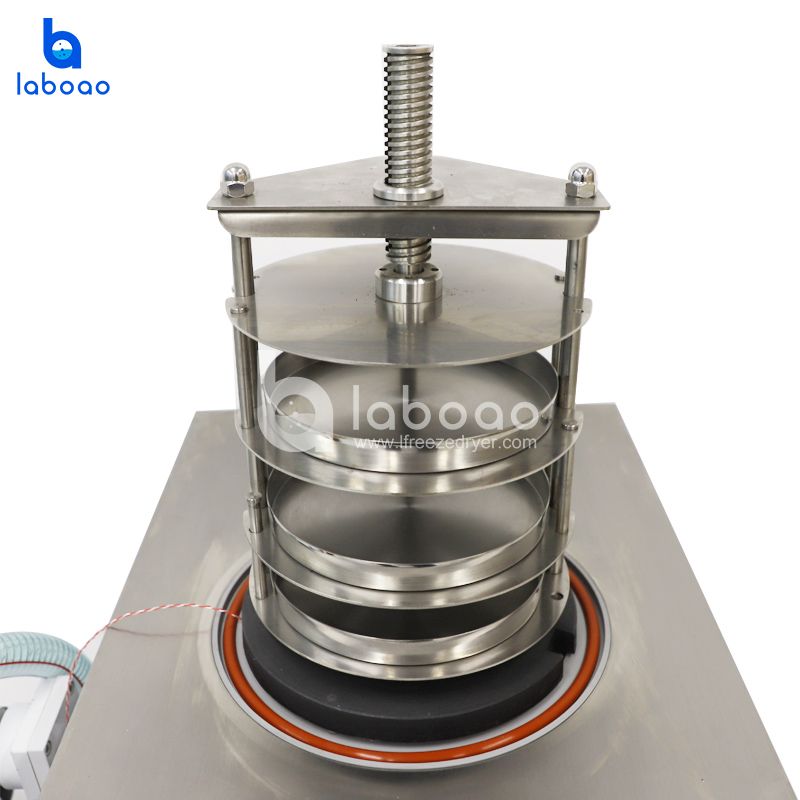

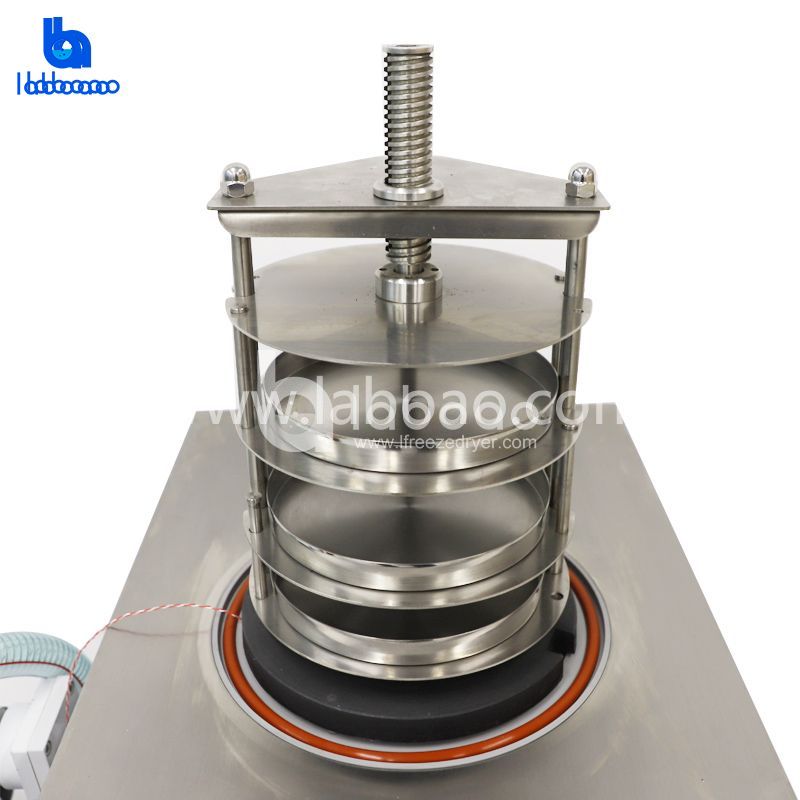

LFD-12SD freeze dryer combines the features of top-press type and multi-manifold type on the standard type base. Suitable for freeze drying of bulk (liquid, pasty, solid) conventional substances, and also suitable for the drying of vials' materials.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW

Vacuum freeze dryers are widely used in the fields of medicine, pharmaceuticals, biological research, chemicals and food. The lyophilized articles are easy to store for a long time, and can be restored to the state before lyophilization and maintain the original biochemical characteristics after adding water. The LFD-12SD freeze dryer is a small vertical freeze-drying machine with shelf heating and programmable functions for laboratory use or small production to meet the routine freeze-drying requirements of most laboratories.

FEATURES

1. One-piece structure design, small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product are made of inert materials to meet the requirements of GLP.

3. The cold trap and the operating table are made of stainless steel, which is corrosion-resistant and easy to clean.

4. All stainless steel inflatable (discharge) valve The company design, production, safety, anti-corrosion, no leakage.

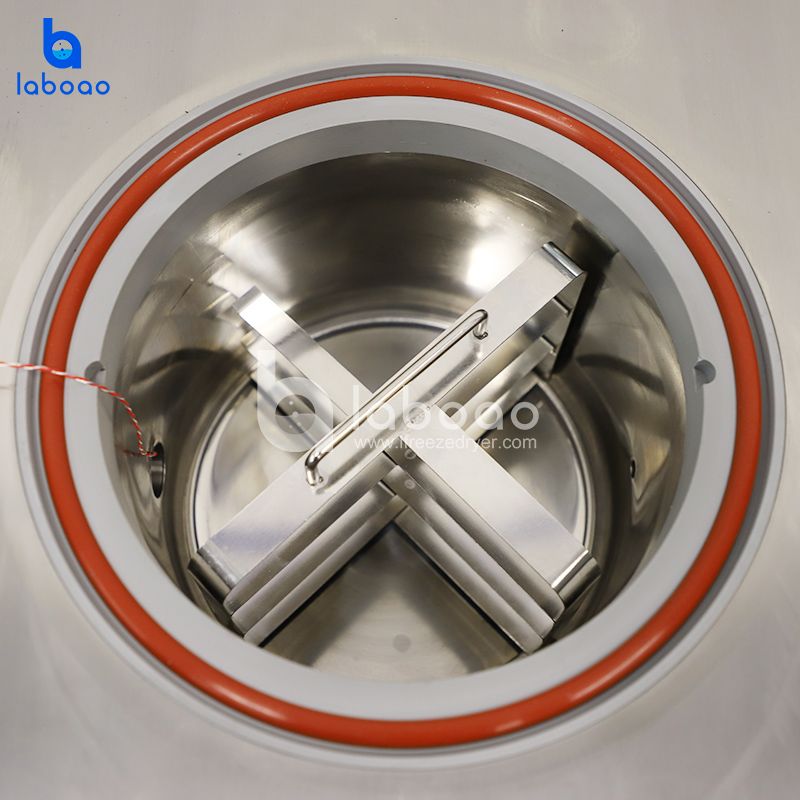

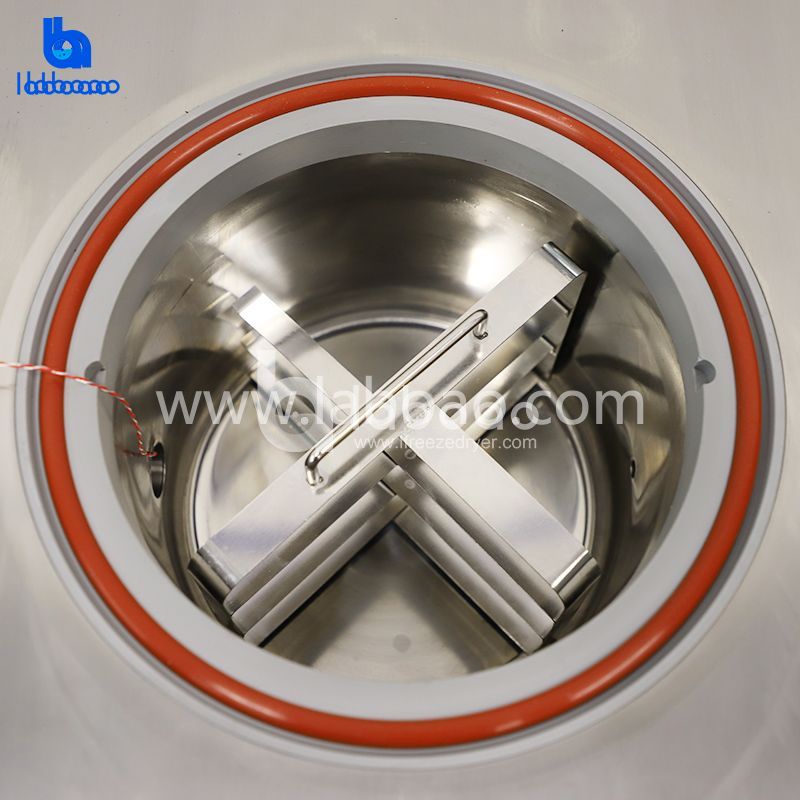

5. The cold trap has a large opening, no inner coil, and sample pre-freezing function, no need for a low temperature refrigerator.

6. Specialized gas guiding technology, cold trap for uniform ice trapping and strong ice trapping ability.

7. Internationally renowned brand compressors, high efficiency, energy saving, long service life and low noise.

8. Well-known brand vacuum pump, pumping speed, to achieve a higher ultimate vacuum.

9. Vacuum pump protection function, can set the vacuum pump to start the cold trap temperature and protect the service life of the vacuum pump.

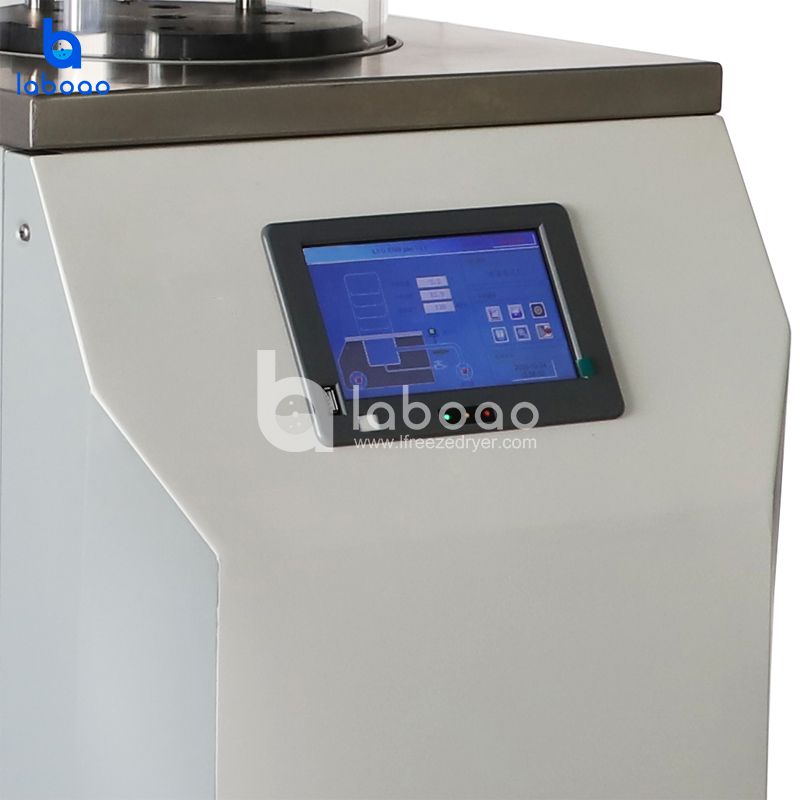

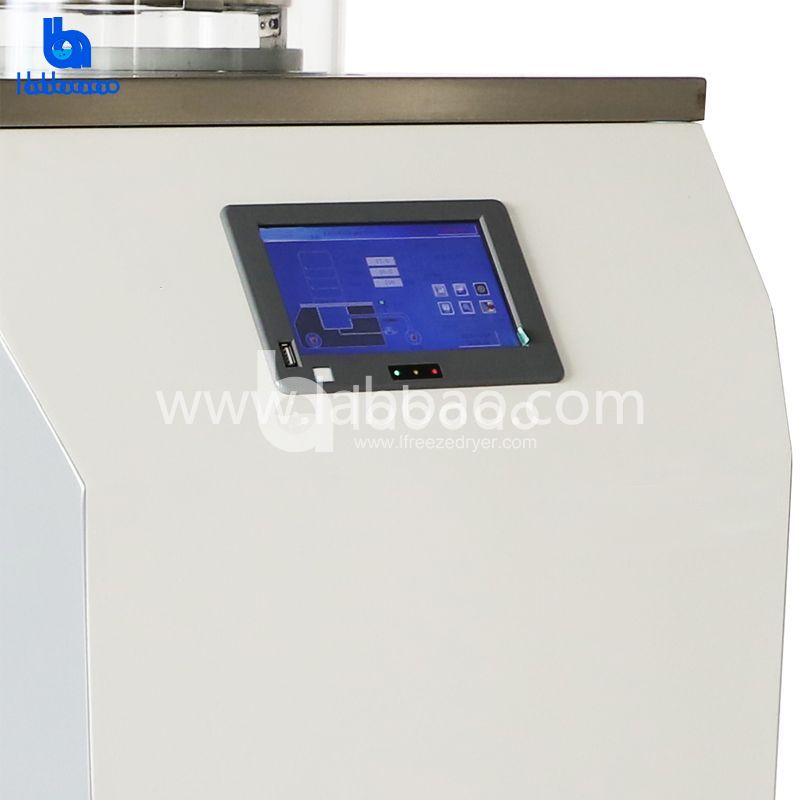

10.7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.

11. Professionally designed FD-EMB control system can save hundreds of process recipes, each set contains 50 temperature control sections to improve process optimization rate.

12. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed by computer and printed.

13. The plate layer heating safety voltage (36V) temperature control system can control the heating rate.

14. Flexible manual + automatic control mode, manual groping process, automatic batch production.

15. Real-time alarm display and historical alarm query function, convenient for fault diagnosis and equipment maintenance.

16. User level and password can be set and decentralized for operation management.

17. Powerful sensor calibration to ensure accurate measurement of long-term use.

18. The intelligent AI electric defrost SH-10KCQ uses safe voltage and combines multi-dimensional fuzzy control technology to significantly improve defrosting efficiency.

SPECIFICATIONS

Model

LFD-12SD

Freeze-dried area

0.08m2

Temperature range of tray

-40~+60

Material plate size

Ф180mm

Number of material trays

3

Material plate spacing

70mm

Eggplant type specifications and quantity

100/250/500/1000ml, 2 each

Cold trap temperature

≤ -56 ° C (no load), optional ≤ -80 ° C (no load)

Cold trap depth

240mm

Cold trap diameter

Ф220mm

Water catching capacity

3-4kg/24h

Pumping rate

2L/S

Ultimate vacuum

≤5pa (no load)

Installed power

1400w

Host weight

62kg

Mainframe dimensions

580×500×720mm

-80 °C mainframe dimensions

770 × 550 × 720mm

Drying chamber size

Ф260×470mm

Cooling method

air cooling

Defrost mode

Nature defrost

Plate loading material

0.8L (material thickness 10mm)

Vial bottle capacity

Vial bottle Ф 12mm

492

Vial bottle Ф 16mm

279

Vial bottle Ф 22mm

147
