0.12㎡ Vertical Normal Lab Freeze Dryer

LFD-12A
LFD-12A standard type vacuum freeze dryer is suitable for experiment in laboratory.
  • Freeze dried area0.12㎡
  • Material tray sizeФ200mm
  • Water catching capacity3-4kg/24h
  • Plate material1.2L (material thickness 10mm)
Request QuotationChat Now
  • WhatsApp Chat

  • WeChat Chat

DESCRIPTION

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

FEATURES

1. CFC Free refrigeration

2. LCD display drying curves, English interface

3. Big opening of condenser, condenser with pre-freezing function

4. low noise compressor, good efficiency,long service life

5. Condenser and operation panel are all stainless steel

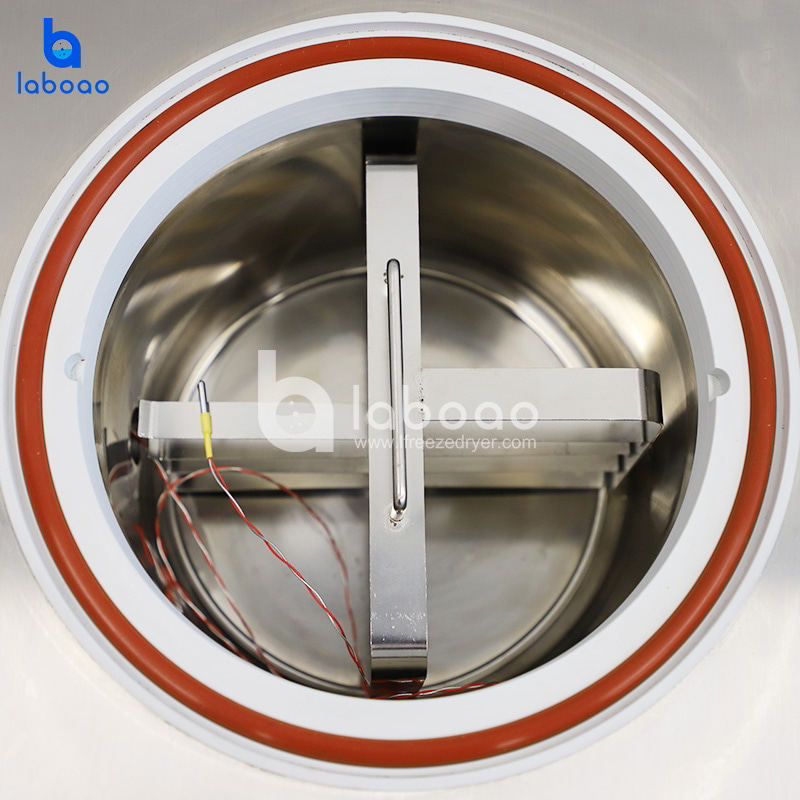

6. Drying Chamber with organic glass is safe and visible

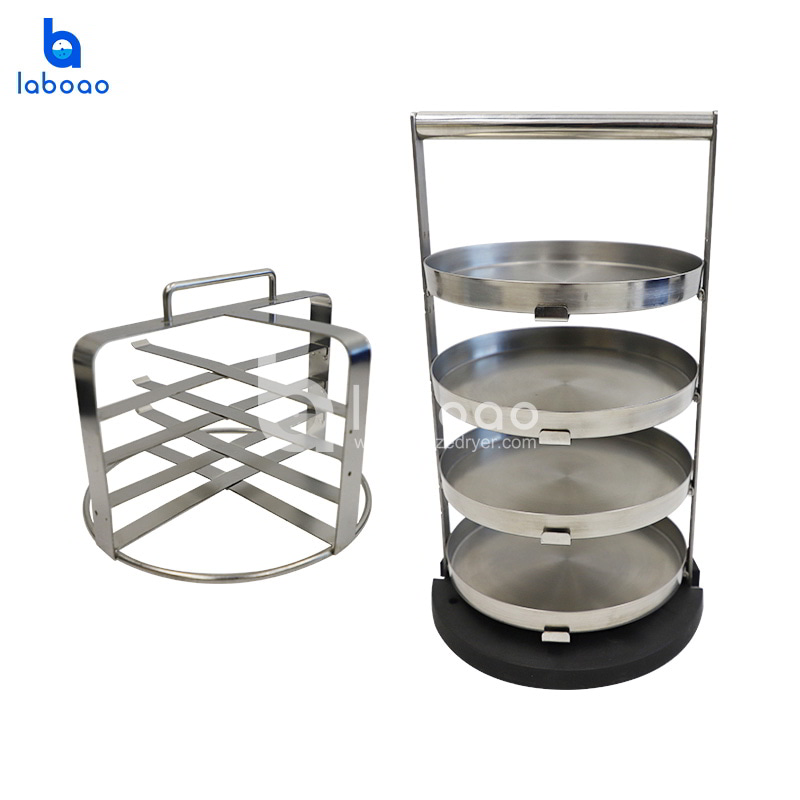

7. Shelf and tray are stainless steel, tray spacing can be customized

8. Small volume , easy and convenient operation

9. Nitrogen valve is optional

10. Eutectic point test device is optional

11. Communication interface is optional

12. Cascade refrigeration is optional , applied for -80℃ device

SPECIFICATIONS

Model

LFD-12A

Freeze drying area

0.12

Condenser capacity

3-4 L /24h

Condenser temperature

-55 (-80 optional )

 Vacuum degree

< 10 Pa

Material tray

Ф200mm , 4 layers

Bulk capacity

1.2L, 10mm thickness

Vial capacity Φ12mm

920 pcs

Vial capacity Φ16mm

480 pcs

Vial capacity Φ22mm

260 pcs

Cooling

Air, draughty, ambient   temperature≤25

Voltage

220V, 50Hz

Host dimension

556×460×(720+430) mm

Power

750W

Host weight

62 kg
